Breaking free from the traditional power grid offers independence and sustainability, but building your own off-grid electrical system might seem overwhelming at first. You’ll discover that with proper planning and understanding of basic components like solar panels, batteries, and inverters, creating a reliable DIY power system is within your reach. Whether you’re powering a tiny home, remote cabin, or preparing for emergencies, an off-grid system can provide the energy security you need while reducing your environmental impact.

Taking control of your power generation isn’t just about saving money – it’s about mastering a valuable skill that combines renewable energy with practical engineering. This comprehensive guide will walk you through each step of building your own off-grid electrical system, from calculating your power needs to selecting the right components and safely connecting everything together.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Understanding Off-Grid Power System Basics

Before diving into component selection and setup, you’ll need to grasp the fundamental concepts of off-grid power systems.

Hey hey – real quick! Don’t forget to subscribe to get our best content 🙂

Types of Off-Grid Systems

Off-grid systems come in three main configurations: solar-only, hybrid and backup systems. Solar-only systems rely exclusively on photovoltaic panels and battery storage. Hybrid systems combine solar with wind turbines or generators for redundancy. Backup systems maintain minimal power during outages using smaller components. Each type offers different levels of energy independence based on your location climate and power requirements.

Essential Components Overview

Every off-grid system requires four core components to function effectively. Solar panels convert sunlight into electricity while charge controllers regulate power flow to protect batteries. Deep-cycle batteries store energy for use when needed and inverters transform DC battery power into AC household current. Additional components include mounting hardware safety disconnects surge protectors and monitoring systems. Quality components from reputable manufacturers ensure system reliability and longevity.

Calculating Your Power Needs

Start by listing all electrical devices and their wattage ratings. Multiply each device’s wattage by its daily hours of use to determine watt-hours per day. Common loads include:

Appliance	Watts	Daily Hours	Watt-Hours
LED Lights	10	5	50
Refrigerator	150	24	3600
Laptop	65	4	260

Add 20% buffer capacity to account for system inefficiencies and future expansion.

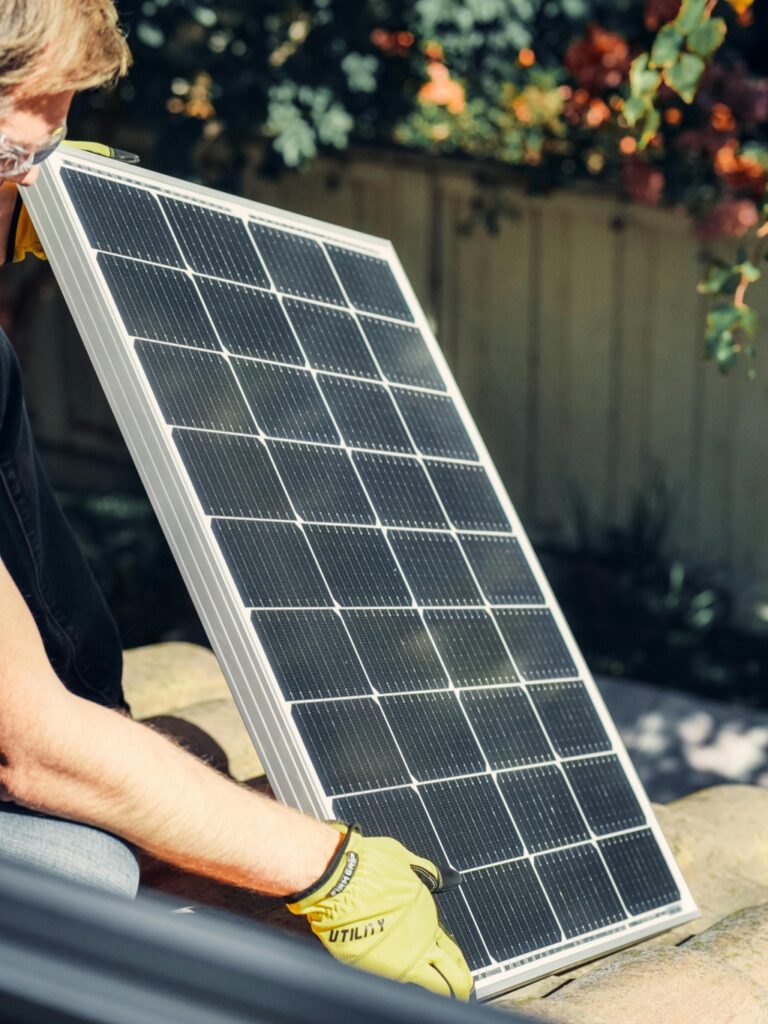

Planning Your Solar Panel Installation

Determining Panel Capacity

Calculate your solar panel capacity based on your daily power consumption and peak sun hours in your location. Use this formula: Required panel wattage = (Daily energy needs in watt-hours ÷ peak sun hours) × 1.2 (efficiency factor). For example: if you need 5000Wh daily with 5 peak sun hours you’ll need at least 1200W of solar panels. Consider seasonal variations in sunlight when sizing your system to ensure year-round power adequacy.

Choosing the Right Location

Select an unshaded south-facing location (in the Northern Hemisphere) that receives maximum sunlight throughout the day. Check for potential obstacles like trees buildings or chimneys that could cast shadows on your panels. The optimal tilt angle should match your latitude for fixed installations. Use solar pathfinder tools to analyze sun exposure patterns across different seasons. Ensure the installation spot can support the weight of your panel array.

Mounting Options and Requirements

Choose between roof ground or pole mounting based on your available space and local regulations. Roof mounts offer space efficiency but require proper waterproofing and structural support. Ground mounts allow easy maintenance access and optimal angle adjustment. Use corrosion-resistant mounting hardware rated for your climate zone. Install lightning protection and proper grounding systems. Ensure mounting structures can withstand local wind loads with a minimum 90 mph rating.

Selecting and Setting Up Batteries

Battery Types and Specifications

Deep-cycle batteries form the foundation of your off-grid power storage system. Lead-acid batteries offer reliable performance at a lower cost point with options like flooded (FLA) AGM and gel types. Lithium batteries provide superior efficiency with 80% depth of discharge longer lifespan and lighter weight but come at a premium price. Consider these specifications when choosing:

Battery Type	Depth of Discharge	Lifespan (Years)	Cost per kWh
FLA	50%	5-7	$100-150
AGM	50%	7-10	$200-300
Lithium	80%	10-15	$500-800

Proper Battery Bank Configuration

Configure your battery bank based on your daily power requirements and system voltage. Wire batteries in series to increase voltage while maintaining amp-hour capacity. Connect in parallel to increase amp-hour capacity while keeping voltage constant. Calculate your battery bank size using this formula:

Configuration	Formula
Battery Bank Size	(Daily Usage × Days of Autonomy) ÷ (Depth of Discharge × System Voltage)

• Clean terminal connections
• Test specific gravity (for FLA batteries)
• Monitor voltage levels
• Inspect for corrosion
• Top up water levels in FLA batteries
• Keep temperature between 68-77°F (20-25°C)

Installing Power Inverters and Charge Controllers

Inverter Size and Type Selection

Select an inverter based on your total power requirements plus 20% for surge capacity. Pure sine wave inverters deliver cleaner power ideal for sensitive electronics though they cost more than modified sine wave options. Match your inverter’s voltage to your battery bank (12V 24V or 48V) and ensure its continuous power rating exceeds your maximum expected load. For example a 2000W inverter can run multiple appliances like a refrigerator microwave and lights simultaneously.

Charge Controller Requirements

Choose between PWM and MPPT charge controllers based on your system size and budget. MPPT controllers are 20-30% more efficient at converting solar power but cost 3-4 times more than PWM models. Size your controller based on your solar array’s voltage and current ratings. Calculate the minimum amp rating by dividing total solar watts by battery voltage then add 25% safety margin. For instance a 1000W 12V system needs at least a 100A controller.

Wiring and Safety Considerations

Install proper gauge wire based on current load and distance to minimize power loss. Use marine-grade tinned copper cables for battery connections and weatherproof MC4 connectors for solar panels. Mount components in a dry ventilated area and include safety features like:

• Circuit breakers between major components
• Fuses for DC circuits
• Lightning arrestors for solar arrays
• Grounding systems for equipment

Always follow manufacturer specifications and local electrical codes when making connections.

Connecting System Components Together

Properly connecting your off-grid system components requires careful attention to safety and specification details to ensure reliable performance.

Cable Selection and Sizing

Choose marine-grade copper cables rated for your system’s maximum current load and voltage. Use the American Wire Gauge (AWG) chart to select appropriate wire thickness based on amperage and distance. For battery connections use 2/0 AWG or larger cables to minimize voltage drop. Install cables in weather-resistant conduit when running them outdoors or underground. Remember to account for temperature derating factors when sizing cables for high-current applications.

Creating Circuit Diagrams

Start by sketching a basic single-line diagram showing power flow from panels through components to loads. Label each component with specifications including voltage ratings amperage limits and model numbers. Include disconnect points fuses and breaker locations in your diagram. Use standard electrical symbols and maintain consistent wire color coding throughout (red for positive black for negative green for ground). Document all connections for future reference and troubleshooting.

Ground Fault Protection

Install Ground Fault Circuit Interrupters (GFCIs) on all AC circuits to prevent electrical shock hazards. Mount a central grounding bus bar connecting all equipment grounds to earth ground via copper ground rod. Use minimum 6 AWG bare copper wire for grounding conductors. Test GFCI protection monthly using built-in test buttons. Add surge protection devices at critical points to safeguard sensitive electronics from lightning and power surges.

Implementing Backup Power Solutions

Including redundant power sources ensures your off-grid system remains reliable during equipment failures or extreme weather.

Generator Integration

Select a generator that matches your power requirements while considering fuel availability. Install an automatic transfer switch to seamlessly transition between power sources when needed. Choose between portable generators for occasional backup or permanent standby generators for consistent support. Connect your generator through a dedicated breaker panel to protect your system from power surges. Ensure proper ventilation and maintain safe distances from living spaces when operating.

Battery Backup Systems

Design your battery bank with extra capacity to handle extended periods without solar charging. Install a secondary battery bank that operates independently from your primary storage system. Use different battery technologies (like lithium and lead-acid) to diversify failure points. Add a battery monitoring system to track charge levels and automatically switch between banks when necessary. Implement temperature-controlled housing to extend battery life.

Emergency Power Planning

Create a tiered load-shedding plan that prioritizes essential devices during power shortages. Maintain a list of critical loads with their power requirements and runtime priorities. Install smart load controllers to automatically disconnect non-essential circuits when battery levels drop below preset thresholds. Keep spare fuses circuit breakers and basic repair tools readily accessible. Document emergency procedures and post them near your main electrical panel for quick reference.

Testing and Monitoring Your System

Performance Verification

Start performance testing with a comprehensive voltage check across all connections using a multimeter. Verify solar panel output during peak sunlight hours by measuring voltage at the array and comparing it to specifications. Test inverter efficiency by running essential appliances while monitoring power draw and battery levels. Document baseline readings including battery voltage charge controller settings and inverter output to establish normal operating parameters.

System Monitoring Tools

Install a battery monitor to track state of charge voltage and current flow in real-time. Use a power analyzer to measure actual energy consumption and solar production throughout the day. Consider smart monitoring systems that offer remote access through smartphone apps providing alerts for system issues. Essential tools include:

• Digital multimeter for voltage testing
• Clamp meter for current measurements
• Data logger for long-term performance tracking
• Infrared thermometer for checking connection points

• Tightening loose connections
• Cleaning solar panels
• Resetting circuit breakers
• Checking fuse conditions
• Validating charge controller settings

Maintaining Your Off-Grid System

Regular monitoring and maintenance will maximize your off-grid system’s efficiency and extend its lifespan.

Regular Maintenance Schedule

Create a monthly checklist to inspect solar panels battery banks and electrical connections. Clean your solar panels every 3 months using distilled water and a soft brush to remove dust dirt and debris. Check battery fluid levels monthly for flooded lead-acid batteries and test specific gravity quarterly. Inspect wire connections inverters and charge controllers bimonthly for signs of corrosion loose fittings or damage. Document all maintenance activities including dates readings and any repairs in a dedicated logbook.

Component Replacement Guidelines

Replace deep-cycle lead-acid batteries every 5-7 years or when capacity drops below 80%. Update charge controllers every 10 years and inverters every 10-15 years depending on usage patterns. Solar panels typically need replacement after 25-30 years when efficiency drops below 80%. Keep spare fuses circuit breakers and essential connectors on hand. Monitor component warranties and plan replacements during optimal weather conditions. Create a replacement fund by setting aside 1% of system cost annually.

System Optimization Tips

Track power generation and consumption patterns using monitoring software to identify efficiency improvements. Adjust solar panel angles seasonally to maximize sun exposure – steeper in winter flatter in summer. Install smart power strips to eliminate phantom loads from idle devices. Use high-efficiency LED bulbs and Energy Star appliances to reduce power demands. Schedule heavy power usage during peak solar generation hours. Consider adding a micro-wind turbine or micro-hydro system if conditions permit to diversify power sources.

Conclusion

Building your own off-grid electrical system is a rewarding journey that puts you in control of your energy future. While the initial setup requires careful planning and investment the long-term benefits of energy independence and sustainability make it worthwhile.

Remember that success lies in proper sizing accurate calculations and quality components. Take your time to research test and maintain your system regularly. With the right approach you’ll create a reliable power source that serves you well for decades to come.

Start small if needed and expand your system as you gain confidence. You’re now equipped with the knowledge to break free from traditional power grids and embrace a more sustainable energy-independent lifestyle.
