7 Essential Tools for Installing a Water Heater Bypass System: RV Owners Swear By

Discover the 7 must-have tools for DIY RV water heater bypass installation. Protect your vehicle from freezing damage while saving money on winter maintenance with these essential items.

Preparing your RV for winter doesn’t have to be complicated when you have the right tools on hand. Installing a water heater bypass system is a crucial winterizing step that protects your investment and prevents costly damage from freezing temperatures.

You’ll need specific tools to complete this DIY project efficiently, saving you money on professional service calls while giving you complete control over your RV’s maintenance schedule.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

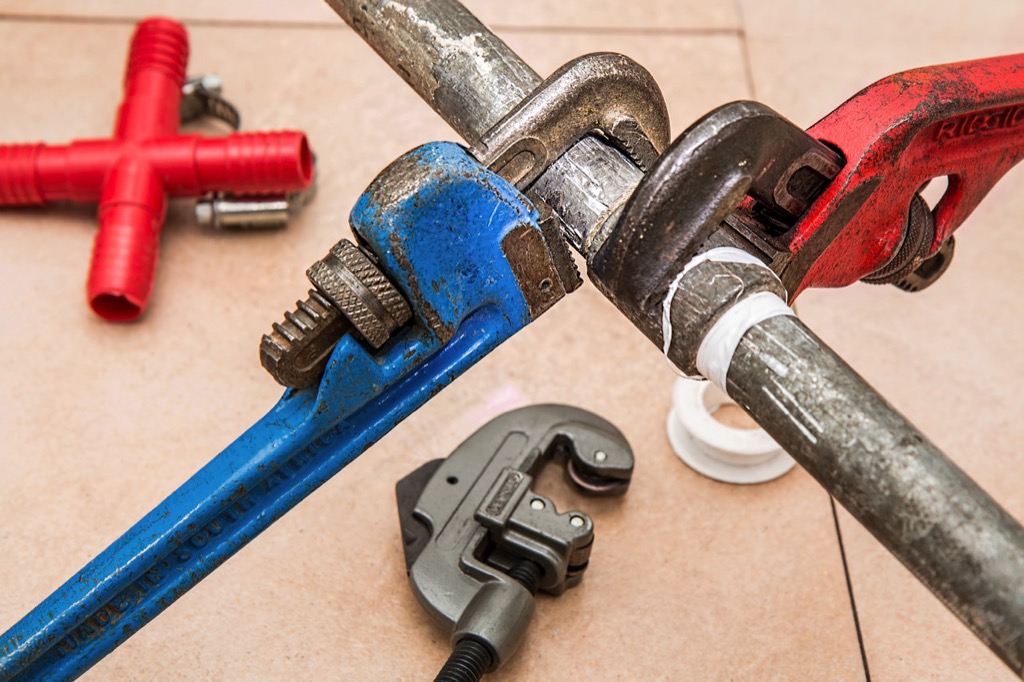

1. Pipe Wrenches: Your Primary Connection Tool

Pipe wrenches are the backbone of any water heater bypass installation project. These heavy-duty tools provide the leverage and grip needed to loosen and tighten the plumbing connections that make up your RV’s water system.

Standard Sizes Needed for Water Heater Plumbing

You’ll need at least two pipe wrenches for your bypass project: a 10-inch and a 14-inch model. The 10-inch wrench works perfectly for accessing tight spaces around your water heater, while the 14-inch provides extra leverage for stubborn connections. Most RV water heater plumbing uses 1/2-inch to 3/4-inch pipe fittings, which these standard wrench sizes can handle efficiently.

Adjustable vs. Fixed Pipe Wrenches

Adjustable pipe wrenches offer versatility that’s invaluable during bypass installations. These tools can accommodate various pipe diameters with a simple adjustment of the jaw width. Fixed wrenches, while more limited in application, provide superior grip strength for particularly stubborn connections. For your bypass project, invest in quality adjustable wrenches with teeth that haven’t worn down, as they’ll provide the best combination of versatility and gripping power for copper, brass, and PEX plumbing.

2. Tubing Cutter: For Clean and Precise Cuts

A quality tubing cutter is indispensable for installing your RV water heater bypass system. Unlike hacksaws or other cutting tools, a proper tubing cutter creates clean, square ends that ensure leak-free connections and proper valve function.

Different Sizes for Various Pipe Diameters

You’ll need a tubing cutter that accommodates the common pipe sizes in your RV’s plumbing system, typically ranging from 3/8″ to 1″ in diameter. Mini tubing cutters (capacity up to 1/2″) work perfectly for tight spaces behind your water heater, while standard cutters (up to 1-1/8″) handle larger supply lines. For maximum versatility, consider investing in an adjustable cutter with rotating cutting wheels that can handle multiple diameters.

How to Achieve Perfect Cutting Technique

To achieve clean cuts, place the pipe between the cutting wheel and rollers, then tighten the knob just enough to maintain contact. Rotate the cutter around the pipe, tightening slightly after each revolution until the pipe separates completely. Avoid overtightening, which can deform copper or PEX tubing. After cutting, use the built-in deburring tool to smooth the pipe’s inner and outer edges, preventing flow restrictions and ensuring proper seating of fittings.

3. Propane Torch Kit: Essential for Soldering Connections

A propane torch kit is your go-to tool for creating watertight soldered connections when installing a water heater bypass system. This essential equipment enables you to properly join copper pipes and fittings, ensuring a leak-free installation that will last for years.

Safety Equipment When Using a Torch

When working with a propane torch, safety must be your priority. Always wear heat-resistant gloves to protect your hands from burns and safety glasses to shield your eyes from metal splatter. Keep a fire extinguisher nearby and work on a non-flammable surface. Never use a torch in confined spaces without proper ventilation, as propane combustion consumes oxygen and produces carbon monoxide.

Proper Torch Techniques for Water Heater Bypass Joints

Apply even heat around copper pipe joints using a circular motion, not just one spot. Heat the fitting first, then the pipe, until solder flows freely into the joint when touched to the connection. For optimal results, clean all surfaces with emery cloth and apply flux before heating. Always allow joints to cool naturally—cooling too quickly with water can weaken the bond. Test each connection thoroughly before completing your bypass installation.

4. Teflon Tape and Pipe Compound: Preventing Leaks

Proper sealing materials are essential for creating watertight connections in your RV water heater bypass system. Effective sealing prevents costly water damage and ensures your winterization efforts aren’t compromised by leaks.

When to Use Tape vs. Compound

Teflon tape works best on threaded metal or plastic pipe connections with fine threads. Use it for removable connections you might need to service later. Pipe compound (also called pipe dope) is ideal for permanent connections and mixed-material joints. Choose pipe compound for connections exposed to high vibration in your RV, as it maintains flexibility better than tape. For maximum protection on critical connections, experienced RVers often apply a layer of Teflon tape first, followed by a thin coat of pipe compound.

Application Methods for Watertight Seals

To apply Teflon tape correctly, wrap it clockwise around the male threads 3-4 times, keeping tension on the tape while overlapping each layer by 50%. Start one thread back from the end to prevent tape from bunching when connections are tightened. For pipe compound, apply a thin, even layer to the male threads using your finger or a small brush, covering all threads while avoiding excess that could clog the water line. Always tighten connections firmly but not excessively—overtightening can crack fittings and create leaks rather than preventing them.

5. Valve Wrench: For Operating Bypass Valves

A valve wrench is an indispensable tool when installing your RV water heater bypass system, allowing you to properly operate the bypass valves without damaging their components. This specialized tool provides the leverage and grip needed to turn valves securely without applying excessive force.

Types of Valve Wrenches for Different Systems

RV bypass systems typically require specific valve wrenches depending on your system’s configuration. Square-head wrenches (1/4″ to 3/8″) work best for standard shutoff valves, while long-handled wrenches provide additional torque for stubborn valves. Multi-angle valve wrenches are ideal for accessing recessed bypass valves in tight spaces. For plastic butterfly valves, use a ratcheting valve wrench to prevent cracking the valve housing during installation or seasonal operation.

Proper Torque Techniques to Avoid Damage

Always apply steady, even pressure when operating bypass valves rather than jerky, forceful movements that can damage internal components. Turn valves fully to their open or closed position without over-tightening, which can strip threads or crack valve bodies. For plastic valves, stop turning immediately when you feel resistance at the end of the valve’s travel. When working with older valves, apply a penetrating lubricant first and use gradual, increasing pressure rather than sudden force to prevent breakage.

6. Pressure Gauge: Monitoring System Performance

A pressure gauge is crucial for monitoring your RV water system’s performance during and after installing a water heater bypass. This tool helps you detect potential problems before they cause damage to your plumbing system.

Where to Install Pressure Gauges

Install pressure gauges at two strategic locations in your bypass system: before the water heater and after the bypass valve assembly. This dual-gauge setup allows you to monitor pressure differentials, which can indicate valve issues or blockages. For RV installations, choose compact gauges with 0-100 PSI ranges and colored zones marking safe operating pressures. Mount them where they’re visible during system operation and winterization procedures.

Reading and Interpreting Pressure Measurements

Your pressure gauge readings reveal crucial system information. Normal RV water system pressure should register between 40-50 PSI—readings consistently above 60 PSI indicate dangerous overpressure that can damage pipes and fittings. Uneven readings between your two gauges typically signal a partially closed valve or debris blockage. During winterization, a stable pressure reading confirms your bypass is functioning correctly, preventing antifreeze from entering your water heater tank.

7. Winterization Kit: Comprehensive Bypass Solution

Components of a Quality Winterization Kit

A comprehensive winterization kit typically includes three bypass valves, connecting pipes, fittings, and detailed instructions. Most quality kits feature durable plastic or brass valves designed specifically for RV plumbing systems. You’ll also find adapters for different pipe sizes, Teflon tape, and often a hand pump for antifreeze introduction. Some premium kits include blow-out plugs for air compressor connections and valve lubricant to ensure smooth operation even after months of disuse.

How to Select the Right Kit for Your RV Model

Choose your winterization kit based on your RV’s specific water heater configuration and pipe diameters. Measure your existing plumbing connections before purchasing—most RVs use 1/2″ or 3/8″ lines, but some larger models require 3/4″ fittings. Consider kits with quick-connect fittings if you winterize frequently, as they streamline future maintenance. For older RVs, select kits with brass components for durability, while newer models typically work well with high-quality plastic valves. Always verify compatibility with your RV’s water heater brand to ensure proper fit.

Conclusion: Assembling Your Water Heater Bypass Toolkit

Equipping yourself with these seven essential tools will make your water heater bypass installation straightforward and efficient. From pipe wrenches and tubing cutters to proper sealing materials and pressure gauges these tools ensure a leak-free system that protects your RV during winter months.

Remember that quality matters when selecting your tools. Invest in durable options that will serve you for multiple seasons of RV maintenance. With the right winterization kit and proper technique you’ll gain peace of mind knowing your RV’s plumbing system is protected from freezing temperatures.

Taking control of this maintenance task not only saves you money but also provides valuable knowledge about your RV’s systems. Your properly installed bypass will preserve your water heater and ensure your adventures can continue smoothly once warmer weather returns.

Frequently Asked Questions

Why do I need to install a water heater bypass in my RV?

Installing a water heater bypass in your RV is essential for proper winterization. It prevents antifreeze from filling your water heater tank (which would waste gallons of antifreeze) and protects your RV’s plumbing system from freeze damage. This preventative measure saves money on costly repairs and extends the life of your water heater by allowing you to isolate it during the winterization process.

What tools do I need for installing a water heater bypass?

Essential tools include pipe wrenches (10-inch and 14-inch sizes), a quality tubing cutter, a propane torch kit for soldering connections, Teflon tape and pipe compound for sealing, valve wrenches for operating bypass valves, and pressure gauges to monitor system performance. Having these tools ensures you can complete the installation properly and create leak-free connections.

Which type of pipe wrench is best for RV plumbing work?

Both adjustable and fixed pipe wrenches have their place in RV plumbing work. Adjustable wrenches offer versatility for different pipe sizes, while fixed wrenches provide superior grip strength. For most RV water heater bypass installations, a 10-inch wrench (for tight spaces) and a 14-inch wrench (for extra leverage) will handle most connections effectively.

How do I choose the right tubing cutter for my RV plumbing?

Choose a tubing cutter that accommodates common RV pipe sizes (typically 3/8″ to 1″). Mini tubing cutters work well in tight spaces, while standard cutters handle larger supply lines. For maximum versatility, invest in an adjustable cutter. Ensure your cutter creates clean, square cuts and always use a deburring tool to smooth pipe edges after cutting.

What safety precautions should I take when using a propane torch?

Always wear heat-resistant gloves and safety glasses when using a propane torch. Keep a fire extinguisher nearby and ensure proper ventilation in your work area. Remove flammable materials from the vicinity, work on a heat-resistant surface, and never leave the torch unattended. Allow soldered joints to cool naturally before testing connections.

When should I use Teflon tape versus pipe compound?

Use Teflon tape for threaded connections that may need future servicing, wrapping 3-4 layers clockwise around male threads. Apply pipe compound for permanent joints and connections exposed to high vibration. For maximum protection in critical applications, you can use both—applying pipe compound first, then wrapping with Teflon tape.

How do I properly operate bypass valves during installation?

Use the appropriate valve wrench that fits your specific valves. Apply steady, even pressure when turning valves to avoid damage. For plastic valves, use gentle pressure to prevent cracking. When operating older valves, apply penetrating oil if they’re stiff and avoid jerky movements. Turn valves fully open or closed to ensure proper function.

What pressure readings should I expect in a properly functioning RV water system?

Normal RV water system pressure should read between 40-50 PSI. Consistently high readings (above 60 PSI) may indicate dangerous overpressure, while uneven readings between pre-heater and post-bypass gauges can signal blockages or valve issues. A stable pressure reading during winterization confirms your bypass is functioning correctly, preventing antifreeze from entering the water heater tank.

How do I select the right winterization kit for my RV?

Choose a winterization kit based on your RV’s specific water heater configuration and pipe diameters. Measure existing plumbing connections before purchasing. Consider kits with quick-connect fittings if you winterize frequently. For older RVs, brass components offer durability, while newer models work well with high-quality plastic valves. Always check if the kit includes all necessary components and instructions.

Can I install a water heater bypass myself or should I hire a professional?

With the right tools and basic plumbing knowledge, most RV owners can install a water heater bypass themselves. This DIY project typically takes 2-3 hours and saves significant money on professional service fees. However, if you’re uncomfortable working with propane torches or plumbing connections, hiring a professional ensures proper installation and prevents potential water damage from improper connections.
